Fire System Power Supply Box

Product Name
Power Supply Box
Model No.
AS-PSU9A
Input Voltage
AC 220V / 50 Hz
Output Voltage
DC 24V
Output Current
9 AH
Charging Voltage
DC 27.6V / 1.5A
Output Terminals
Three 24V positive and negative poles
Battery Terminals
Battery + / -
Cable Inlet
Three pvc cable gland connector locknut
Recommend Battery Type
Lead-acid battery 2 PCS 24V / 7AH
Type of Protection
IP30
Dimension
Approx. L335 x H260 x W103 (mm)
Operating Temperature
-10℃ ~ +50℃
Operating Humidity
20% ~ 90% RH (No Condensation)


INQUIRY
Description

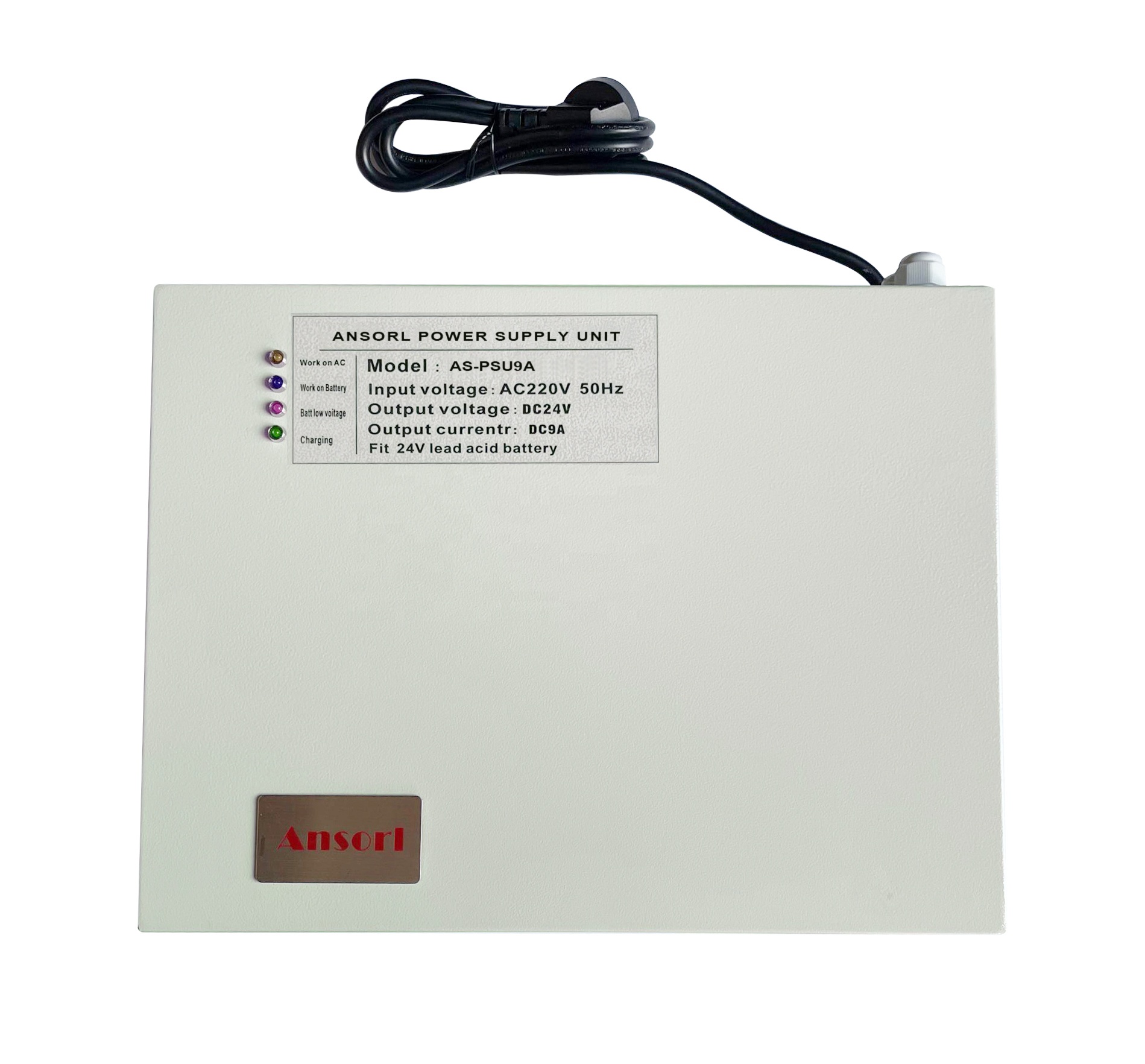

AS-PSU9A is an external power supply in a compact metal housing for holding up two 12V / 7 Ah batteries.

It provides additional uninterruptible power for use in fire, security, alarm, access control, cctv systems.

It is listed for indoor dry locations and can easily be installed where needed.
