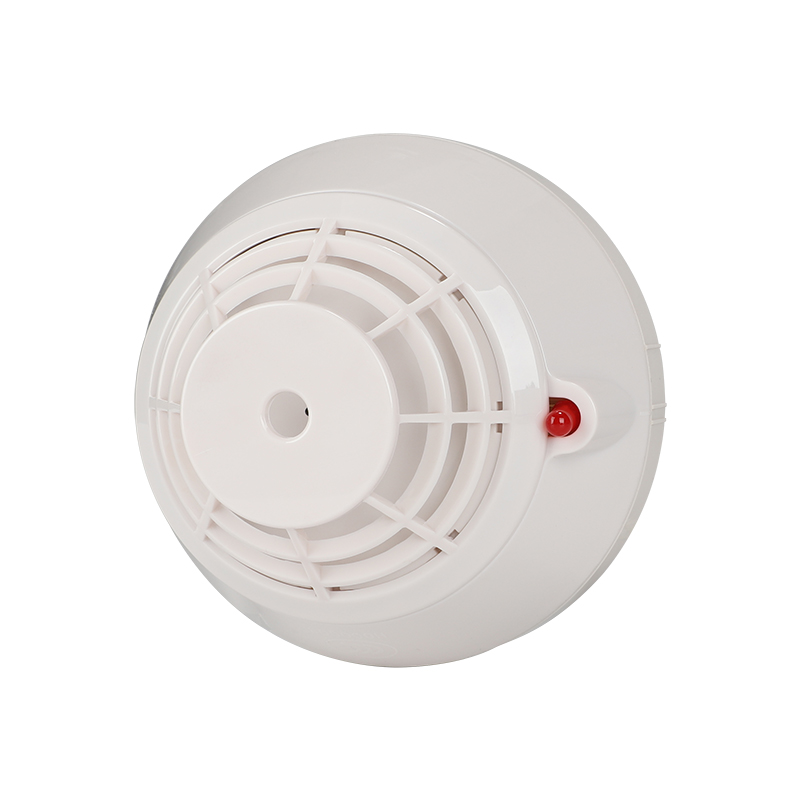

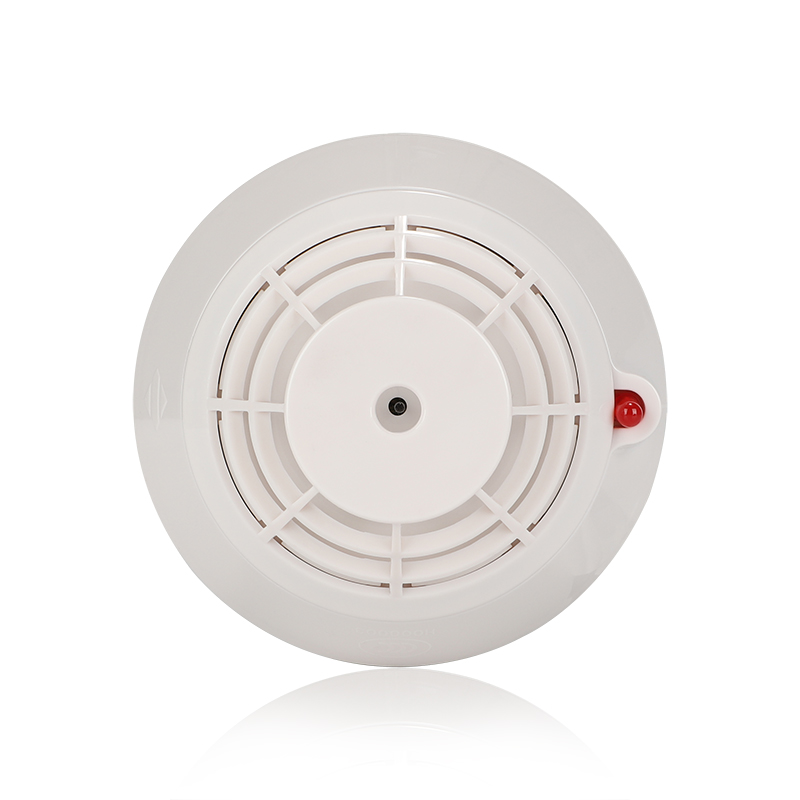

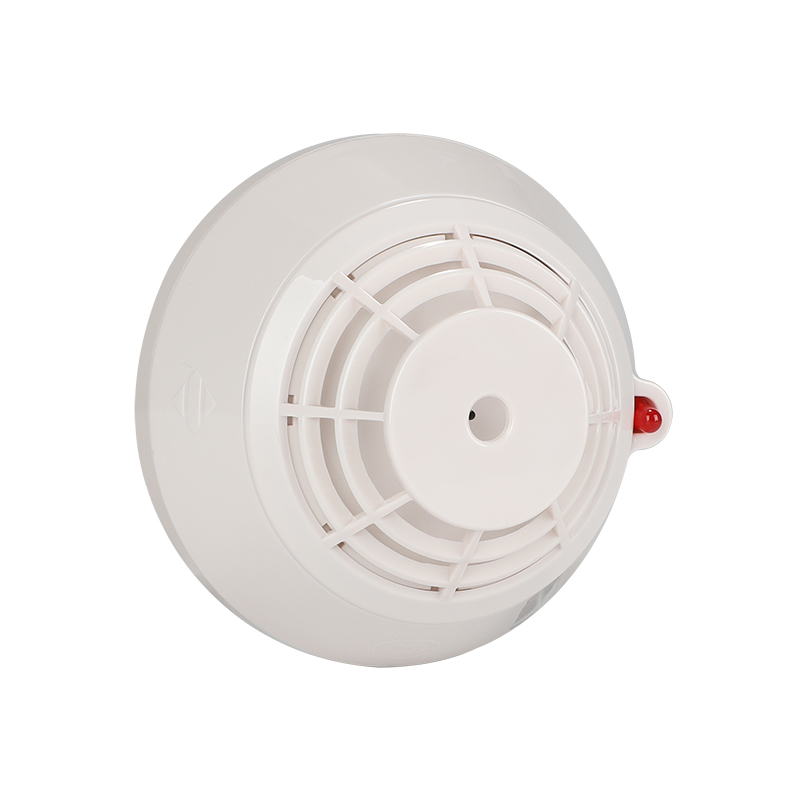

AHD105 Addressable Heat Detector

Product Features:

1.Built-in standalone CPU, quick calculating speed and excellent stability.

2.Non-polarity two-wire bus to make cabling easy, and avoid wrong wirin.

3.Sealed robber type of heat sensitivity component enhances anti-humidity and anti-erosion.

4.Three sensitivity levels of the detector are optional at the control panel to suit different environments.

5.Temperature rising compensation to improve responsive capacity upon different temperature rising status.

6.Special production process to make the device work at high temperature,high humidity and high altitude environment.

7.ESD static protection grade 12000V, strong anti-interference ability.

INQUIRY
Description

Technical Parameters:

Item number

AS-AHD105

Operating Environment

Indoor,  temperature: -10℃~+50℃;  relative  humidity: ≤95%   (40℃±2℃,  non condensing)

Operating Voltage

Two-wire Bus 24V

Operating Current

Monitoring:<300uA Alarm:<1.5mA

Indicator

Blinks when polling and keeps on when alarming

Wiring

Two-wire Bus system

IMounting

Ceiling-mount

Dimension

Diameter 100mm, height 56mm

Matched Base

HD105

Alarm temperature

54℃~70℃

Coding

Addressable

Certification

EN54
