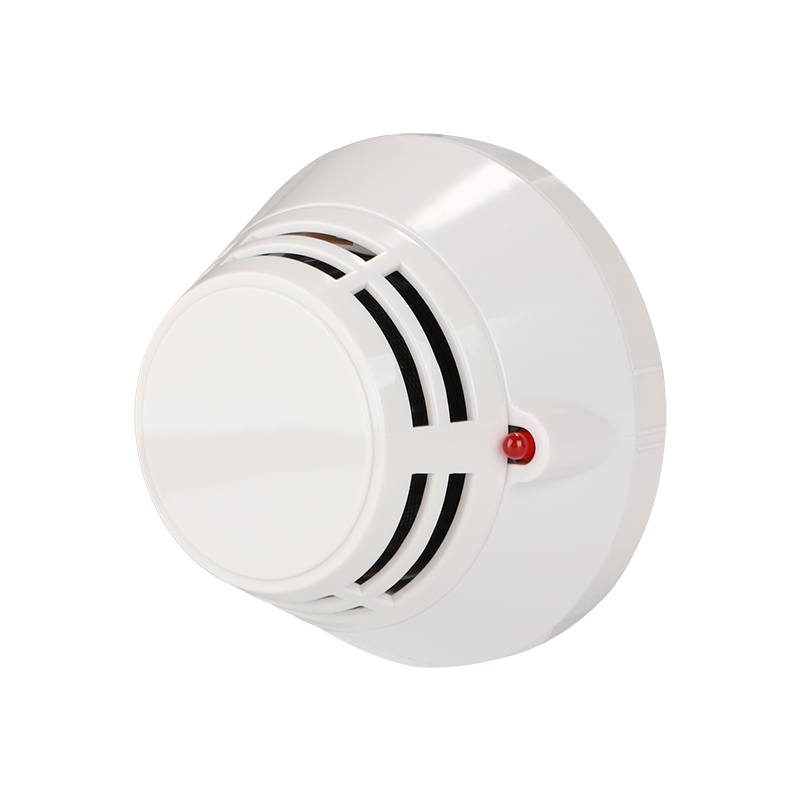

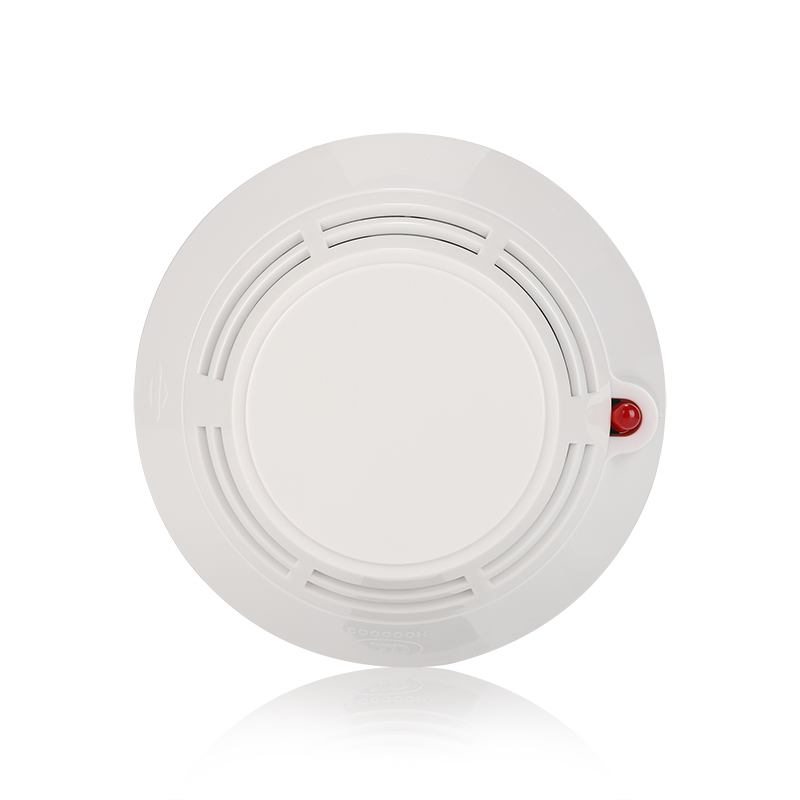

ASD102 Addressable Smoke Detector

Product Features:

1.Built-in standalone CPU, quick calculating speed and excellent stability.

2.Non-polarity two-wire bus to make cabling easy, and avoid wrong wiring

3.Built-in a standalone CPU which can process the sampling data in real-time.

4.It adopts backward scattering maze and makes it more sensitive to detect the smoke generated from burning of different materials.

5.Support sensor fault inspecting and reporting to ensure system work and maintain well

6.Three sensitivity levels of the detector are optional at the control panel to suit different environments.

7.Drift compensation to reduce nuisance alarms.

8.Special production process to make the device work at high temperature, high humidity and high altitude environment

9.ESD static protection grade 12000V, strong anti-interference ability

INQUIRY
Description
Technical Parameters:

Item number

AS-ASD102

Operating environment

Indoors,  temperature: -10℃~+55℃;  relative  humidity: ≤95%   (40℃±2℃,  non condensing)

Operating Voltage

Two bus 24V

Operating Current

Monitoring:<0.3mA Alarm:<1.5mA

Indicator

Blinks when polling, keeps on when alarming

Wiring

Two-wire Bus

Installation

Ceiling-mount

Dimension

Diameter 100mm, height 55mm

Matched Base

SD102

Protection Area

Installation height: ≤12m, about 60m2

Addressable type

Addressable

Standard

EN54
