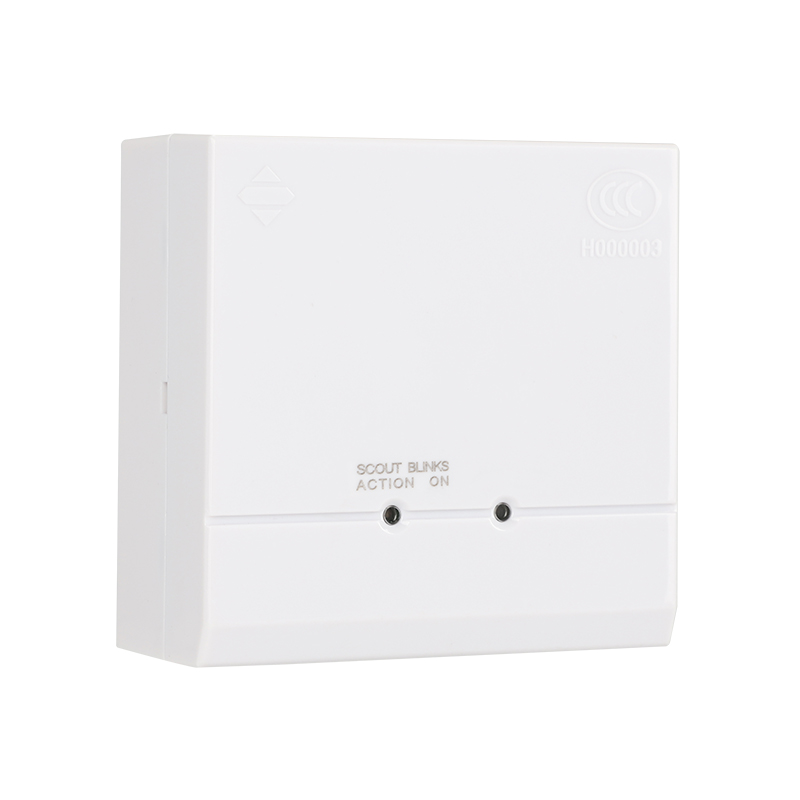

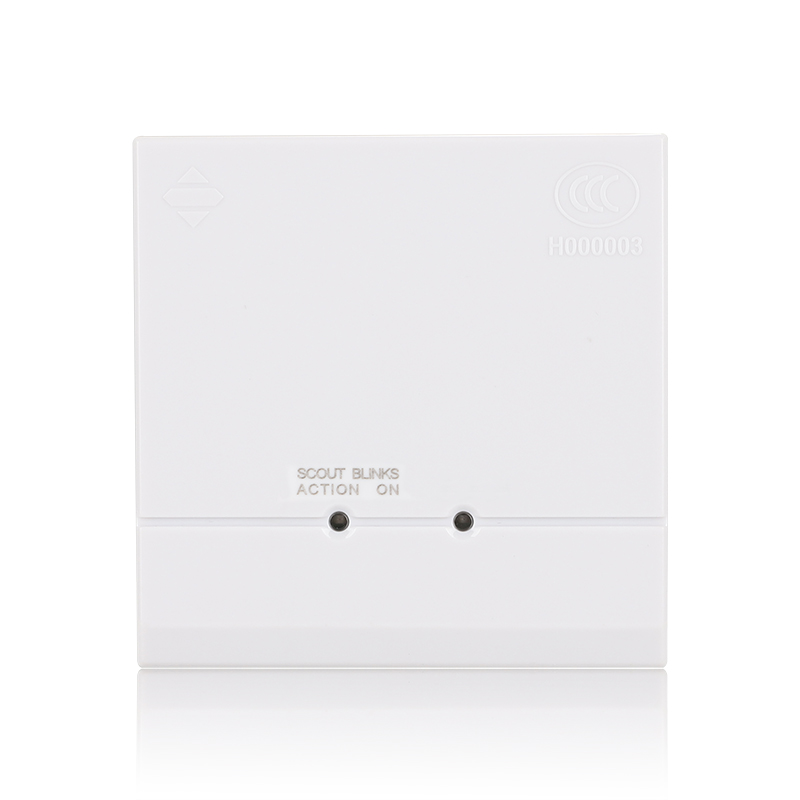

AIM Input Module

Product Features:

1. Mode of operation: Nonpolar two-wire system
2. Quiescent current: <0.5mA (bus); <6mA (power line)
3. Action current: <2mA (bus); <15mA (power line)
4. Operation indicator: The inspection indicator will blink once about every 12 seconds in the inspection status
or remain lit in the operation status.
5. Operating environment: Temperature: -10℃~50℃; relative humidity: ≤95% (40℃±2℃, without
condensation)
6. Terminal load: 4.7K resistance
7. External dimensions: 86×86×40(mm)
8. Weight: about 119g
9. Executive standard: EN54-18

INQUIRY
Description
The AS-AIM Intelligent input module (AS-AIM module for short) is used with a two-bus fire alarm control panel. It can be connected with a conventional smoke detector, a conventional heat detector, a conventional manual call point, a conventional hooter/horn and some other equipment. After the said equipment starts to operate, the alarm signal output will be sent by the AS-AIM module to the fire alarm control panel through a signal bus to give a fire alarm.
