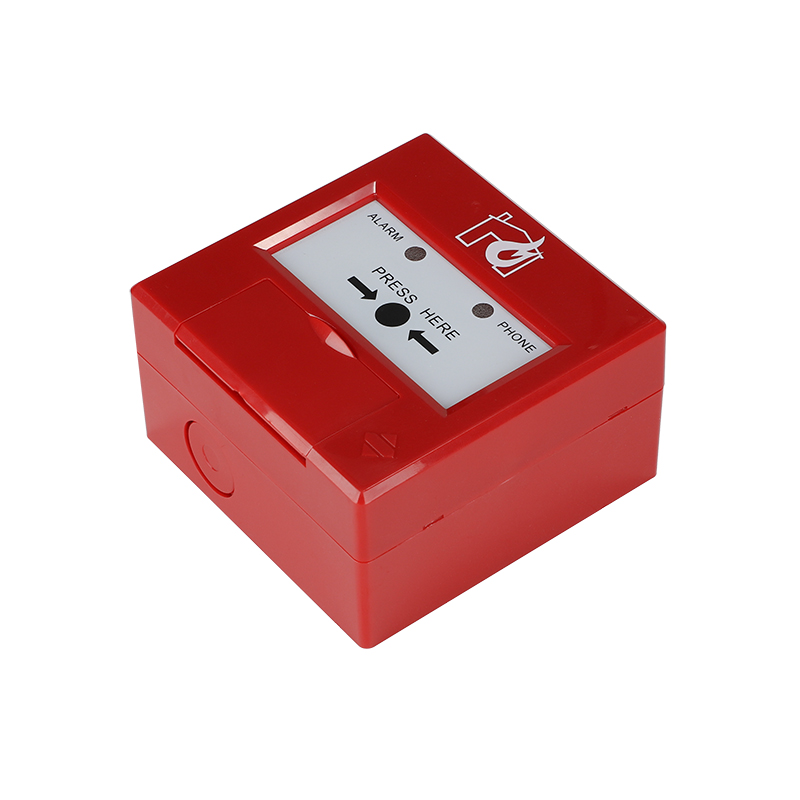

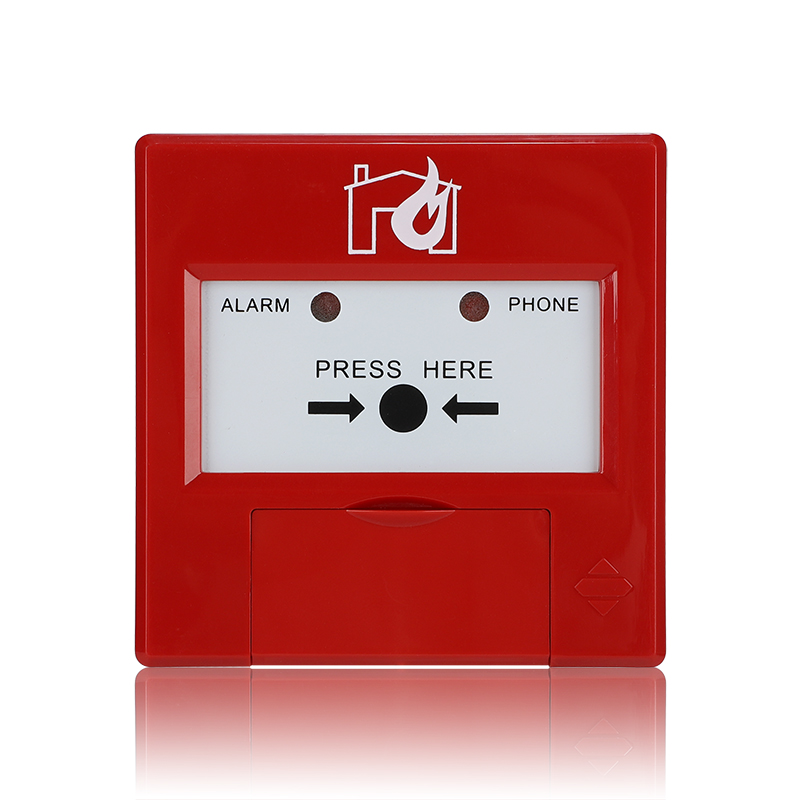

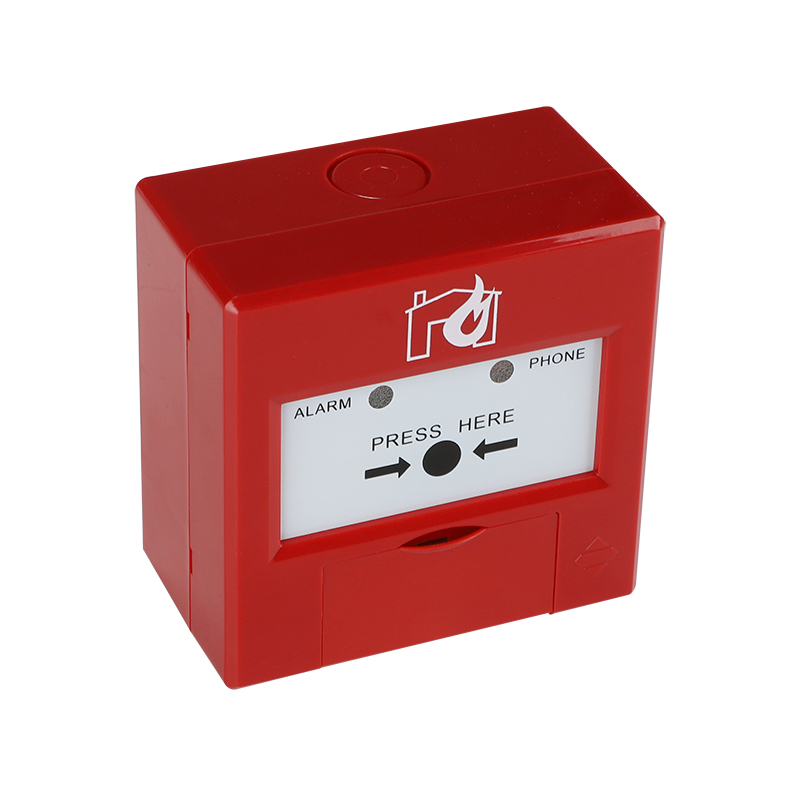

AMCP Addressable Manual Call Point

Product Features:

1.Built-in standalone CPU, quick calculating speed and excellent stability.

2.Non-polarity two-wire bus to make cabling easy, and avoid wrong wiring.

3.Pressing the lever sheet on the fire call points to confirm the fire alarm, it can be reset by the special tool.

4.It has a built-in fire telephone jack and a PHONE indicator.

5.Special production process to make the device work at high temperature, high humidity and high altitude environment.

6.ESD static protection grade 12000V, strong anti-interference ability.

7.It provides passive output contacts that can control other external equipment directly through an intermediate relay.


INQUIRY
Description

Technical Parameters:

Operating Environment

Indoors, Temperature -10℃~+50℃,relative humidity≤95%(40℃±2℃ non condensing)

Working voltage

Bus, 24V

Operating current

Monitoring status:<300uA

Alarm status:<2mA

Operating Indicator

Status indicator, blinks in inspection status, and keeps on when alarming;

Phone indicator, blinks when connect the telephone jack.

Four-wire system

signal wire + phone wire

Mounting

Wall-mount 1.3~1.5m from the ground

Coding

Addressable

Dimension

90 x 90 x 50mm

Telephone jack

Standard Ф6.3 single-track audio connector

Certification


EN54
