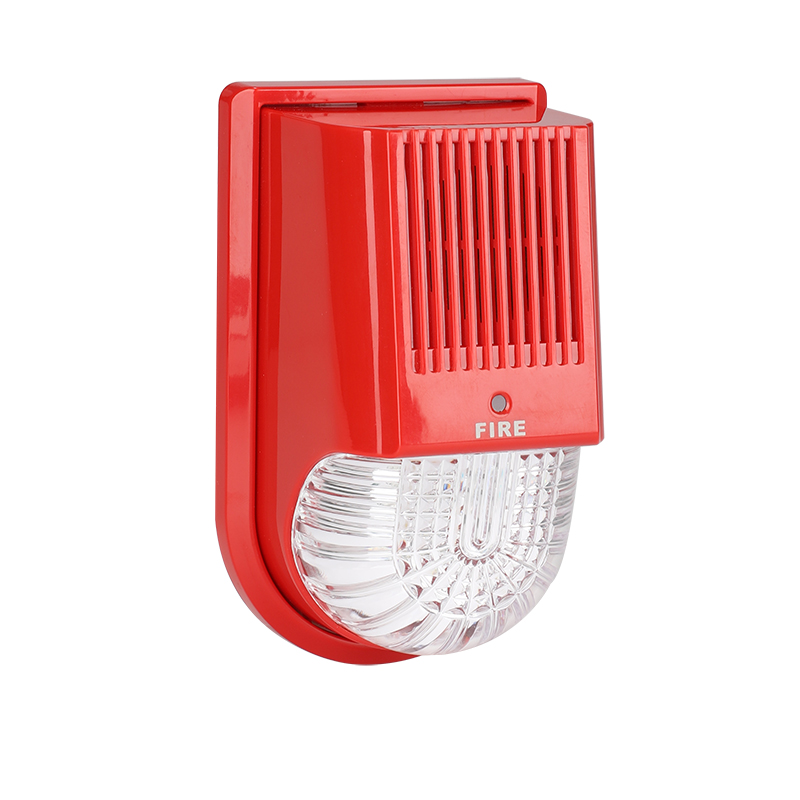

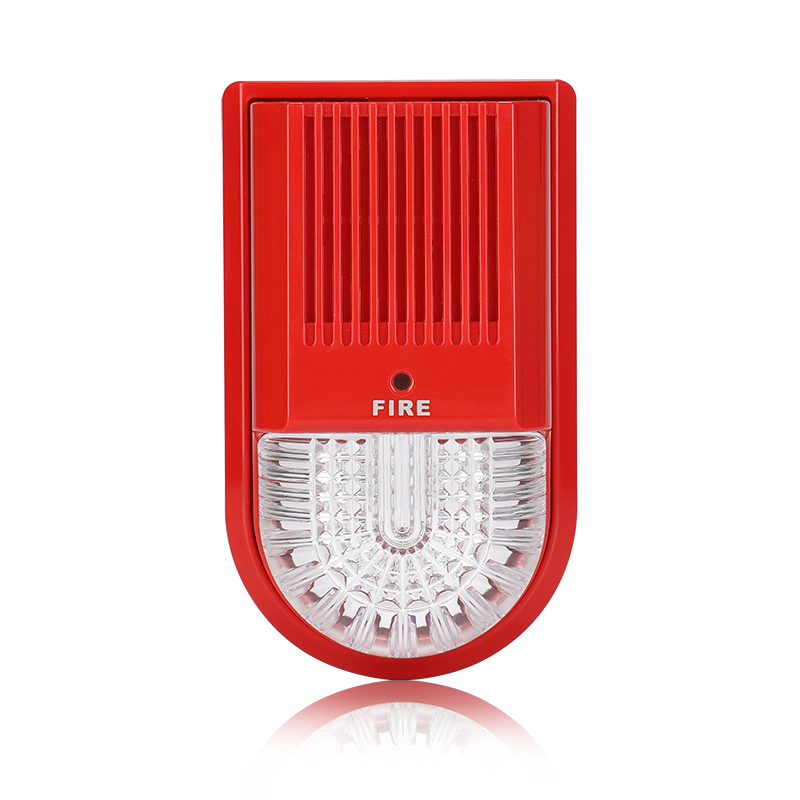

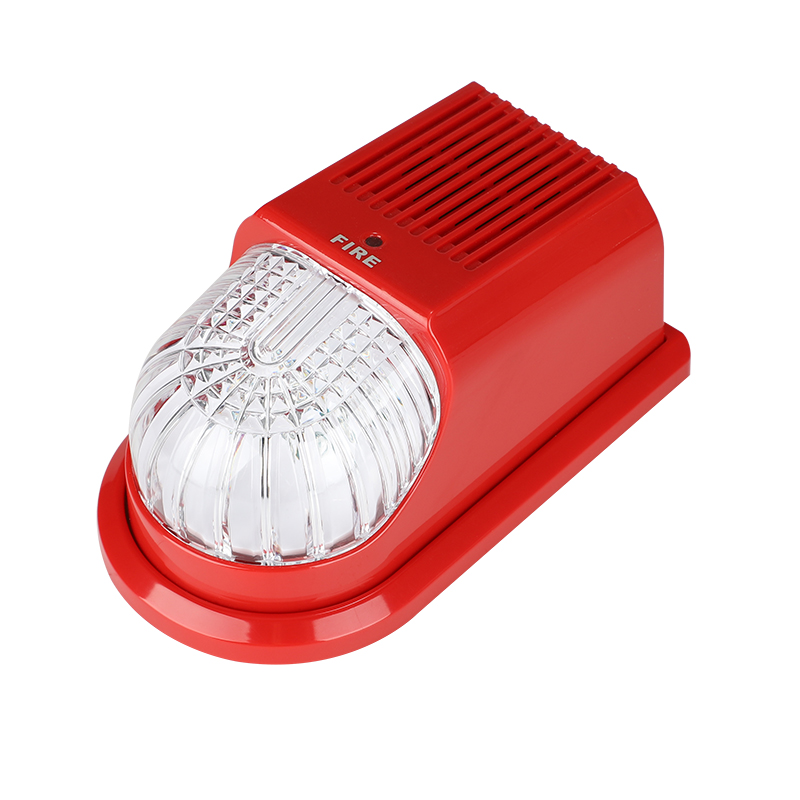

AHS Addressable Strobe Sounder

Product Features:

1.Built-in standalone CPU, quick calculating speed and excellent stability

2.Non-polarity two-wire bus to make cabling easy, and avoid wrong wiring

3.Sounder/ visual indicator setting freely according to different environment.

4.With super bright red LED, it features markedness, long lifespan, and low consumption.

5.Special production process to make the device work at high temperature, high humidity and high altitude environment6.ESD static protection grade 12000V, strong anti-interference ability.

INQUIRY
Description

Technical Parameters:

Item number

AS-AHS

Operating voltage

Bus, DC24V± 20%

Operating current

Monitoring current: <1mA; alarm current: <120mA@DC24V

Operating environment

Indoors. Temperature: -10℃~+55℃; relative humidity: ≤95% (40℃±2℃, without condensation)

Operating Indicator

Blinks when polling, and keeps on when alarming

Blinking rate

Once/second

Alarm volume

>85dB ( Dead ahead 3 meters)

Coding

Addressable

Mounting

Wall-mount/ flushing-mount 1.8 meters from the ground

Wiring method

Four-wire system, non-polarity two signal buses (L1, L2) and power lines (+24V, GND)

Dimension

84 x 142 x 66.4mm

Certification

EN54
