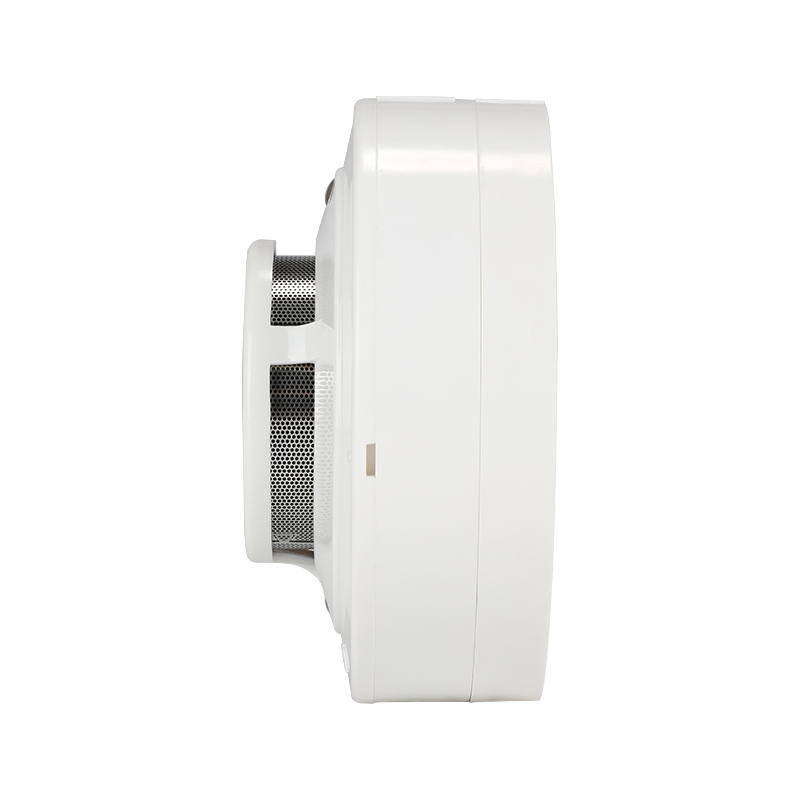

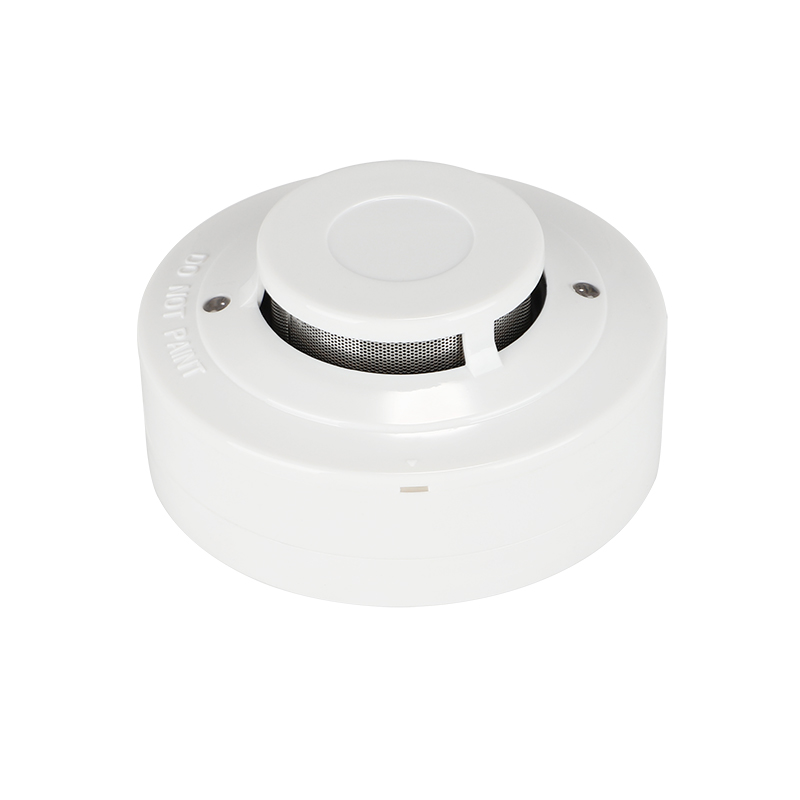

SD102 Smoke Detector

Product Features:

Operating Voltage Range: 9 to 28 VDC Volts Non-polarized

Standby Current: ≤60μA @ 24 VDC

Maximum Alarm Current (LED on: ) ≤ 30mA @ 24 VDC

Operating Humidity Range:  ≤95%RH(40°C±2°C) Relative Humidity, Non-condensing

Operating Temperature Range: -10°C to 50°C

Adjustable Sensitivity: 0.15-0.3dB/m

Height: 48mm installed in Base

Diameter: 99mm

Weight: 155g


AS-SD102 smoke detectors are photo-electronic detector uses a state of-the-art optical sensing chamber. This detector is designed to provide open area protection and to be used with most conventional fire alarm panel.

Two LEDs on each detector provide local 360° visible alarm indication. They flash every six seconds indicating that power is applied and the detector is working properly. The LEDs latch on in alarm. LEDs will be off when a trouble condition exists indicating that the detector sensitivity is outside the listed limit. The alarm can be reset only by a momentary power interruption.

The detector that initiated the alarm condition will have its red LED and relays latched until reset by panel.
