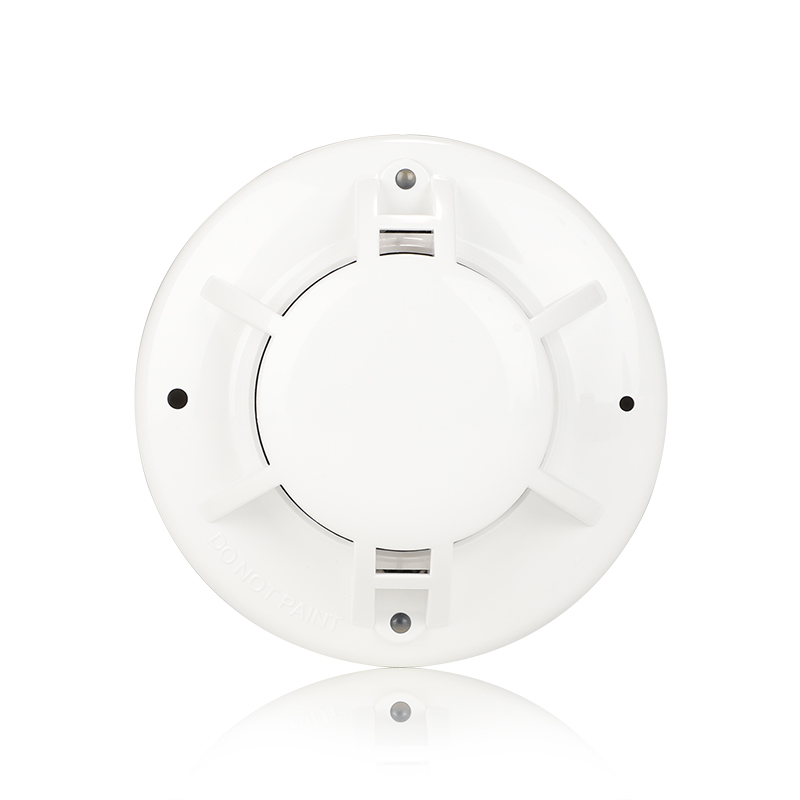

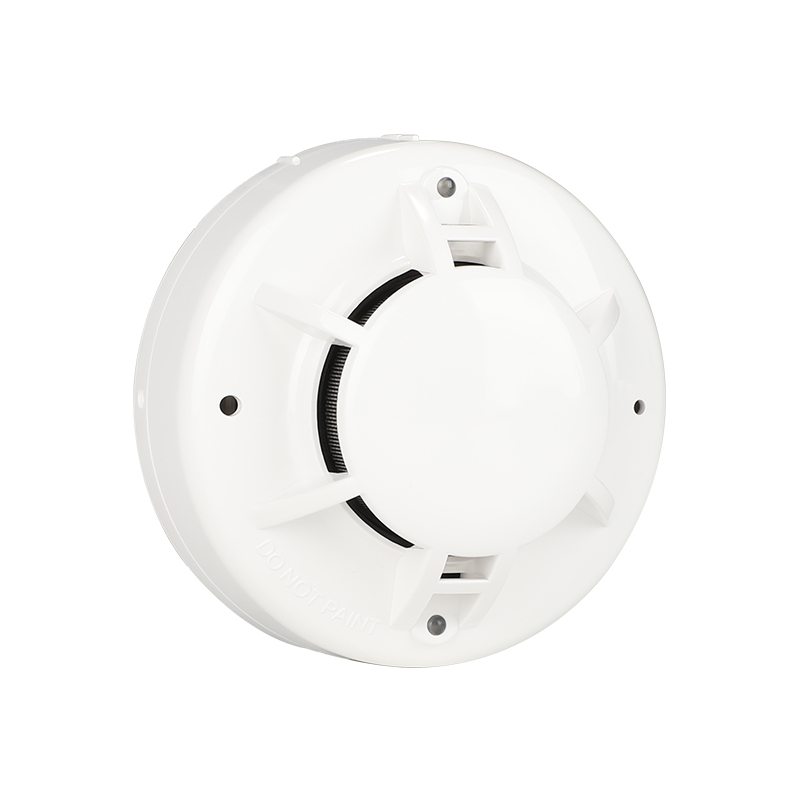

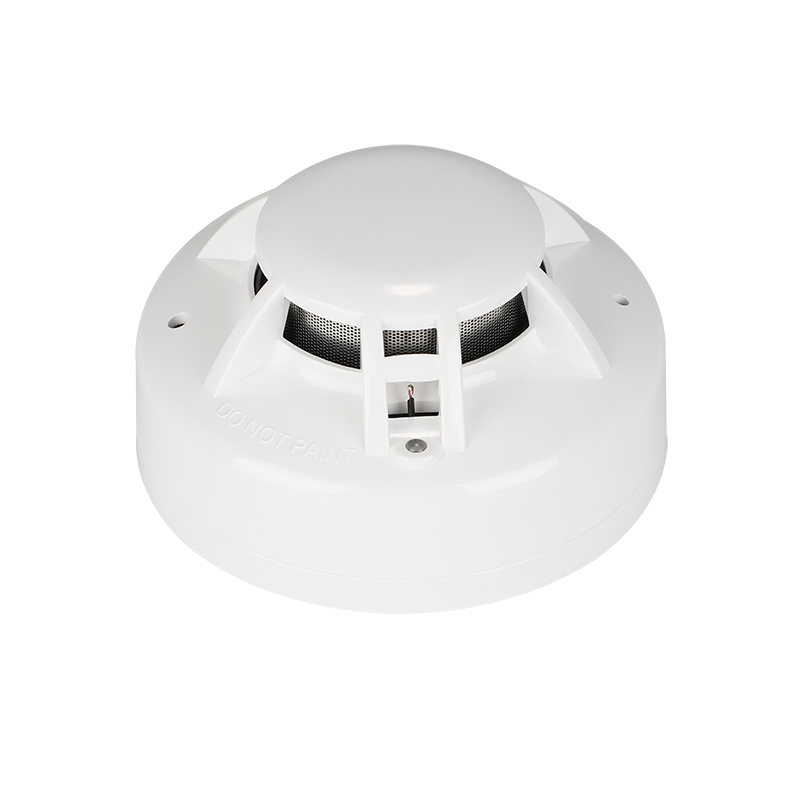

SHD109 Smoke/Heat Combined Detector

Product Features:

Operating Voltage Range:9 to 28VDC Volts Non-polarized

Standby Current:60µA @ 24 VDC

Maximum Alarm Current (LED on: ) 30mA @ 24 VDC

Operating Humidity Range:10% to 93% Relative Humidity, Non-condensing

Operating Temperature Range:14°F to 120°F (-10°C to 49°C)

Smoke  Sensitivity:1.06±.26%FT.

Fixed Temperature Rating:135°F (57°C)

Rate of Rise Detection:Responds to greater than 15°F/min

Height:2.2˝ (55 mm) installed in Base

Diameter:4.0˝ (103 mm)

Weight:5.5 oz. (155 g)


AS-SHD109 Smoke&Heat Detector work perfectly with all conventional intelligent fire control panels

This Conventional Multi-detector uses an intelligent optical sensing chamber and a thermal sensor at the same time to detect smoke and heat.

This detector is designed to provide open area protection and to be used with most conventional fire alarm control panels where it can work from 9Volts to 32V DC.

It has two LEDS on each detector to provide a local 360° viewing alarm indication.

It flashes every five seconds, indicating that power is applied and the detector is working properly.

The LEDS latch on in alarm. LEDS will be off when a trouble condition occurs indicating that the detector sensitivity is outside the listed limit. The alarm can be reset only by a momentary power interruption.

This detector supports External Remote indication LED.
