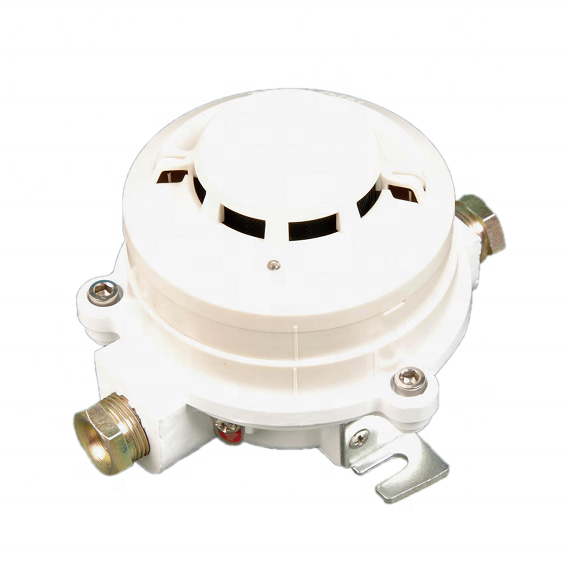

SHD803EX Explosion Proof Smoke and Heat Detector

Type
Explosion Proof
Operating Voltage
24VDC
Standby Current
≤120μA
Alarm Current
≤30mA
Explosion Proof Mark
 Exd (ib) IIBT6 / Exd (ib) IICT6
Power-on Time
≤30s
The Highest Wind Speed
7.6m/s (1500fpm)
The Ambient Temperature
-10 ° C ~ +55 ° C
Relative Humidity
≤95% (non-condensing)


INQUIRY
Description

AS-SHD803EX explosion-proof smoke and heat combined detector is a conventional type detector with relay output, it’s compatible with most of fire alarm control panels in the market.


AS-SHD803EX explosion-proof smoke and heat combined detector is able to detect smoke or heat. It adopts new scattering technology to improve the reliability, stability and consistency of the smoke sensor, furthermore, it’s built in a high quality temperature-sensitive element to detect the ambient temperature.

AS-SHD803EX explosion-proof smoke and heat combined detector featured with novel structure, reliable performance and strong moisture resistance.

AS-SHD803EX explosion-proof smoke and heat combined detector has been fitted with a safety barrier. The safety barrier adopts a resistive and transistor dual electronic switch circuit, which has fast starting speed and can be automatically restored.

AS-SHD803EX explosion-proof smoke and heat combined detector is applicable to Zone 1 and Zone 2 of areas with explosion-proof requirement in petroleum and chemical industries.
