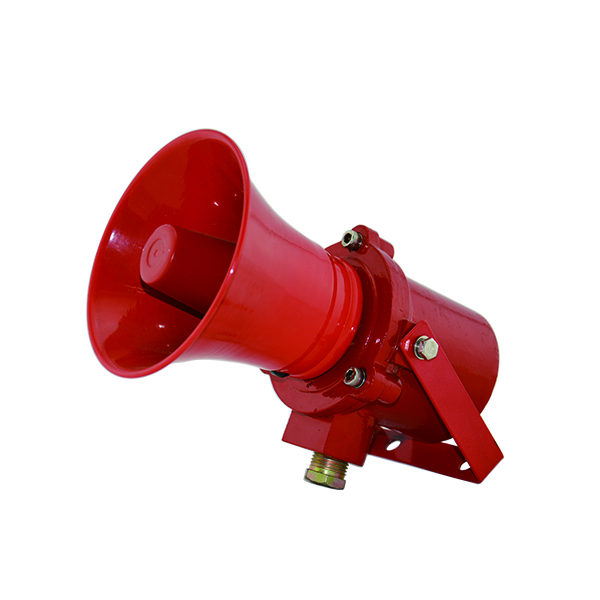

SIREN-EX Explosion Proof Alarm Siren

Type
Explosion Proof
Power Supply
24VDC
Alarm Current
≤600mA
Sound Intensity
≤110dB
Sound Type
3 Types
Explosion Proof Mark
Exd II CT6
Atmospheric Pressure
80~110KPa
The Ambient Temperature
-20° C ~ +50° C
Relative Humidity
≤95% (non-condensing)


INQUIRY
Description

AS-SIREN-EX explosion-proof fire alarm siren is a conventional type device with relay output, it’s compatible with most of fire alarm control panels in the market.


AS-SIREN-EX explosion-proof fire alarm siren is an essential device of fire alarm system. When there is a fire, the control panel receives alarm signal from fire detector or manual call point, then the panel sends a start signal to the siren, which will give an audible alarm.

AS-SIREN-EX explosion-proof fire alarm siren complies with  GB3836-2010 standards for explosion proof performance. The explosion-proof siren is applicable to Zone 1 and zone 2, containing the hazardous area of clas II B an II C T6 temperature explosive gas atmosphere.
